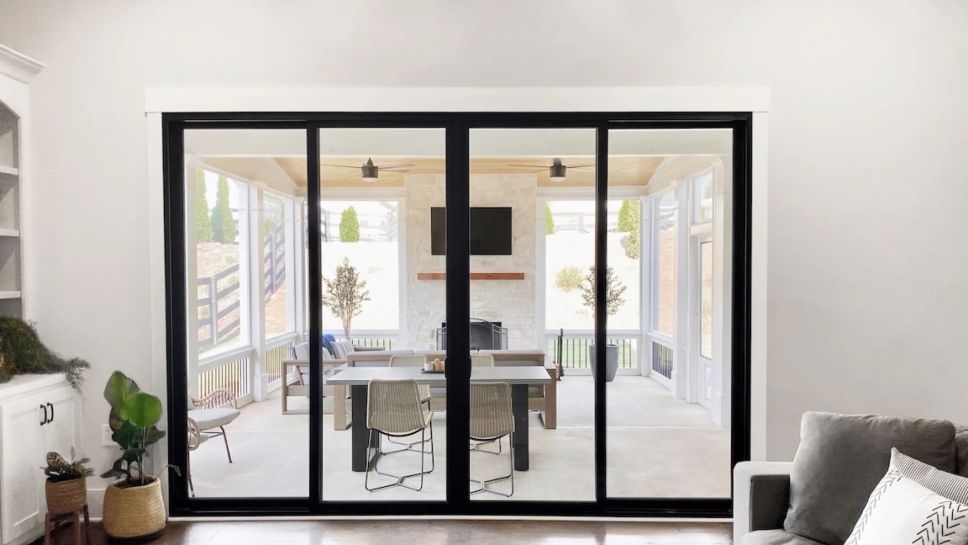

How to Measure a Patio Door for Replacement

Not looking to do these measurements yourself and instead rely on a professional? Call Window World for a free quote. We measure, quote, order and install patio door with our proven process trusted by millions of homeowners nationwide. Whether you’re upgrading or replacing, our team specializes in new patio doors Bossier City homeowners can trust for long-lasting performance and style.

Measuring your patio door the right way is the first step to a perfect replacement. Even a slight mistake can affect fit, energy efficiency, and performance.

This guide walks you through the simple steps to get accurate numbers so you can move forward with confidence and enjoy a smooth installation.

How to measure a patio door for replacement?

Measure the width, height, and frame depth at three points each. Use the smallest numbers and confirm with a professional for accuracy.

Key Takeaways

• Measure width, height, and frame depth at three points each.
• Always use the smallest measurement for accuracy.
• Check for frame warping or unevenness with a level.
• Double-check your numbers before sharing with professionals.
• Professional installation protects fit, efficiency, and warranty.

Why Measuring Your Patio Door Correctly Matters

Getting accurate measurements for your patio door isn’t just about fit, it’s about performance. The right size ensures your new vinyl door opens and closes smoothly without gaps or sticking.

Proper measurements, including accurate patio door width, also help your professional installer do their job right the first time, saving you time and stress. A snug fit improves energy efficiency, keeps your home comfortable year-round, and helps maximise the benefits of Window World’s Lifetime Limited Warranty (restrictions may apply, see your nearest store for details).

Bottom line, measuring correctly sets you up for a seamless upgrade that lasts.

Tools and Materials You’ll Need

• Steel Tape Measure – For accurate width, height, and frame depth readings.
• Notepad and Pencil – Jot down each number so nothing gets lost.
• Level – Helps check if the frame sits straight or leans.
• Step Stool – Handy if you’re measuring taller sliding vinyl patio doors.
• Helper – A second set of hands keeps the tape steady for precise results.

Understanding Patio Door Types

Patio doors aren’t one-size-fits-all. Sliding vinyl patio doors are the most common, offering a smooth glide and wide glass panels that bring in light. French-style vinyl patio doors swing open and give your space a more classic feel.

Knowing which style you have matters before measuring. Sliding doors require you to note track width and frame size, while hinged French doors need precise clearance space.

By identifying your door type first, you’ll make the measuring process quicker and more accurate. This ensures your replacement fits seamlessly and performs the way it should.

Step-by-Step Guide to Measuring a Patio Door

Start with the Right Tools

Grab a steel tape measure, a notebook, and a pencil. A level can also help check if your frame leans or bows. Keeping things simple makes the process smooth.

Measure the Width in Three Spots

Begin at the top, measuring from one inside edge of the frame to the other. Write that number down. Repeat the same step for the middle and bottom of the frame.

If the numbers don’t match exactly, use the smallest measurement. That’s the width that ensures your new vinyl patio door will fit without leaving gaps.

Check the Height from Top to Bottom

Place the tape at the inside edge of the top frame and pull it down to the sill. Record this at the left side, centre, and right side.

Again, the shortest figure is the one to trust. A precise height avoids problems like dragging doors or uneven movement.

Don’t Skip the Frame Depth

Depth tells you how thick the wall is where the door sits. Put your tape across the side of the frame from the inside edge to the outside edge.

Getting this number right matters for choosing a vinyl patio door that sits securely in place. It also helps installers set the unit without extra adjustments.

Look for Frame Irregularities

Frames can warp over time, especially if exposed to extreme weather. Hold a level against the top and sides. If you see gaps, note them down.

Sharing these details when you request a Free Quote helps the installer prepare. It saves you from delays during the replacement.

Double-Check Your Numbers

Mistakes happen, so run through the same steps twice. Consistency builds confidence, and it ensures your measurements are solid.

If your second set doesn’t match, go with the smaller dimensions. A snug fit is always better than a loose one.

Why These Steps Matter

Accurate measurements set the stage for a smooth replacement. A door that’s even half an inch off can stick, leak air, or look uneven.

Window World’s professional installation team uses these numbers to provide the right fit. With over 24 million windows and doors installed for 3.6 million customers, precision is what keeps performance and appearance consistent.

The Final Step

Once you have your notes, connect with Window World for a Free In-Home Quote. Professional installers confirm your numbers, explain your vinyl patio door options, and make sure everything lines up with warranty coverage.

It’s simple: measure carefully, share your figures, and let America’s Exterior Remodeler handle the rest. Your home gets a patio door that’s energy-efficient, backed by a Lifetime Limited Warranty (restrictions may apply; see your nearest Window World store), and designed to look great for years.

Common Mistakes to Avoid

• Measuring Only Once: Take each measurement at least twice. Doors can shift slightly, and double-checking avoids costly errors.
• Ignoring Frame Depth: Don’t just record width and height. Skipping frame depth can lead to a door that won’t sit flush.
• Rounding Numbers: Always measure to the nearest 1/16 inch. Rounding up or down throws off accuracy.
• Skipping Top, Middle, Bottom Checks: Walls aren’t always perfectly square. Measure in three spots across width and height for precision.
• Forgetting Professional Support: Even perfect numbers mean little without expert installation. Rely on professionals to ensure a seamless fit and warranty protection.

When to Call a Professional

If your measurements don’t line up or the frame looks uneven, it’s time to bring in an expert. A professional can confirm accuracy, spot hidden issues, and make sure your new vinyl patio door is installed correctly.

This protects your warranty and guarantees a smooth, lasting fit.

Conclusion

Measuring your patio door correctly is the first step to a smooth replacement. Double-checking width, height, and frame depth ensures your new vinyl patio door fits perfectly.

For peace of mind and warranty protection, trust Window World’s professional installation backed by energy-efficient products.
